| DIN 763 Link Chains | ||||||

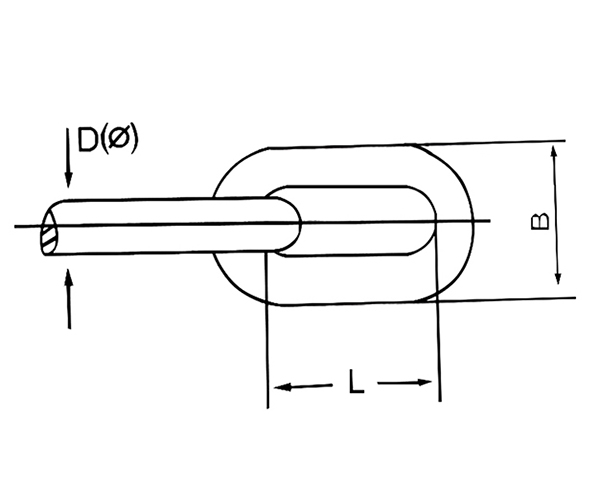

| Diameter | Inside Length | Outside Width | Working Load | Testing Load | Breaking Load | Approx.weight |
| mm | mm | mm | kg | n | n | kg/m |
| 2 | 22 | 8 | 25 | 500 | 1250 | 0.06 |
| 2.5 | 24 | 10 | 40 | 800 | 2000 | 0.1 |
| 3 | 26 | 12 | 55 | 1050 | 3200 | 0.15 |
| 3.5 | 28 | 14 | 80 | 1540 | 3850 | 0.2 |
| 4 | 32 | 16 | 100 | 2000 | 6000 | 0.27 |
| 4.5 | 34 | 18 | 128 | 2500 | 6300 | 0.35 |
| 5 | 35 | 20 | 160 | 3150 | 10000 | 0.43 |
| 6 | 42 | 24 | 224 | 4500 | 14000 | 0.63 |
| 7 | 49 | 28 | 300 | 6000 | 18000 | 0.86 |
| 8 | 52 | 32 | 400 | 8000 | 25000 | 101 |
| 9 | 59 | 36 | 530 | 10500 | 32000 | 1.41 |
| 10 | 65 | 40 | 630 | 12500 | 40000 | 1.75 |
| 11 | 72 | 44 | 790 | 15800 | 47500 | 2.11 |
| 12 | 78 | 48 | 940 | 18800 | 56500 | 2.55 |
| 13 | 82 | 52 | 1000 | 21200 | 63000 | 2.95 |
| 16 | 100 | 64 | 1600 | 33000 | 100000 | 4.45 |
| 18 | 113 | 70 | 2120 | 42300 | 127000 | 5.65 |
| 19 | 119 | 72 | 2370 | 47300 | 142000 | 6.25 |
| 20 | 120 | 75 | 2500 | 50000 | 160000 | 7 |
| 22 | 127 | 82 | 3170 | 63300 | 190000 | 8.55 |
| 25 | 140 | 88 | 4090 | 81700 | 245000 | 10.9 |
| 28 | 152 | 96 | 6000 | 120000 | 300000 | 13.9 |
